**THE
HADAMARD VARIANCE** **W.J. Riley, Hamilton Technical
Services**

**ABSTRACT**

This tutorial paper is an introduction to the Hadamard variance as it is applied for the analysis of frequency stability. It reviews the classical Hadamard variance, describes an overlapping version of the Hadamard variance that offers better estimates for this statistic, introduces a modified version of the Hadamard variance, and the newer Hadamard total variance that offers improved confidence at large averaging factors. The setting of confidence limits and the recognition of divergent power law noise types is also discussed.

**BACKGROUND**

The Hadamard [1] variance is based on the
Hadamard transform [2], which was adapted by Baugh as the basis of a
time-domain measure of frequency stability [3]. As a spectral estimator,
the Hadamard transform has higher resolution than the Allan variance , since
the equivalent noise bandwidth of the Hadamard and Allan spectral windows are
1.2337N^{-1}t^{-1} and
0.476t^{-1} respectively [4]. For the purposes of time-domain
frequency stability characterization, the most important advantage of the
Hadamard variance is its insensitivity to linear frequency drift, making it
particularly useful for the analysis of rubidium atomic clocks [6, 7]. It
has also been used as one of the components of a time-domain multivariance
analysis [5], and is related to the 3rd structure function of phase noise [8,
21].

**HADAMARD VARIANCE**

The Hadamard variance is a 3-sample variance, as commonly used in the
frequency control community [6], with binomially-weighted coefficients that is
similar to the 2-sample Allan variance. It examines the 2nd difference of the
fractional frequencies, the 3rd difference of the phase variations. Because of
this, the Hadamard variance, HVAR or s**² _{H}(**t), converges for the Flicker Walk FM
(a =
-3) and Random Run FM (a = -4) power-law noise types. It is also
unaffected by linear frequency drift. For frequency data, the Hadamard
variance is defined as:

where y_{i} is the ith of M fractional frequency values at
averaging time t.

For phase data, the Hadamard variance is defined as:

where x_{i} is the ith of N=M+1 phase values at averaging time
t.

Like the Allan variance, the Hadamard variance is usually expressed as
its square-root, the Hadamard deviation, HDEV or
s_{H}(t).

**OVERLAPPING HADAMARD
VARIANCE**

In the same way that the overlapping Allan variance makes maximum use
of a data set by forming all possible fully overlapping 2-sample pairs at each
averaging time** **t, the
overlapping Hadamard variance uses all 3-sample combinations [9]. It can be
estimated from a set of M frequency measurements for averaging time
t **= **mt_{0}, where m is the averaging
factor and t_{0} is the basic
measurement interval, by the expression:

where y_{i} is the ith of M fractional frequency values at
each measurement time.

In terms of phase data, the overlapping Hadamard variance can be estimated from a set of N = M+1 time measurements as:

where x_{i} is the ith of N=M+1 phase values at each
measurement time.

Computation of the overlapping Hadamard variance is more efficient for
phase data, where the averaging is accomplished by simply choosing the
appropriate interval. For frequency data, an inner averaging loop over m
frequency values is necessary. The result is usually expressed as the
square root, Hs_{y}(t), the Hadamard deviation, HDEV. The
expected value of the overlapping statistic is the same as the normal one
described above, but the confidence interval of the estimation is better. Even
though all the additional overlapping differences are not statistically
independent, they nevertheless increase the number of degrees of freedom and
thus improve the confidence in the estimation. Analytical methods are available
for calculating the number of degrees of freedom for an overlapping Allan
variance estimation, and that same theory can be used to establish reasonable
single or double-sided confidence intervals for an overlapping Hadamard
variance estimate with a certain confidence factor, based on Chi-squared
statistics.

Sample variances are distributed according to the expression:

c**²**(p, df)**
=(**df · s**²) / **s**²**

where c² is the Chi-square value for probability p and degrees of freedom df, s² is the sample variance, s² is the true variance, and df is the # of degrees of freedom (not necessarily an integer). The df is determined by the number of data points and the noise type. Given the df, the confidence limits around the measured sample variance are given by

s²_{min} =
(s^{2 }· df) /
c²(p, df), and
s²_{max} =
(s^{2} · df) /
c²(1-p, df).

**MODIFIED HADAMARD
VARIANCE**

By similarity to the modified Allan variance, a modified version of
the Hadamard variance can be defined [17] which employs averaging of the phase
data over the m adjacent samples that define the analysis t= m·t_{0}. In terms of phase
data, the 3-sample modified Hadamard variance is defined as:

where N is the number of phase data points x_{i} at the
sampling interval t_{0}, and m is the averaging factor, which can extend from
1 to (floor)N/4 . This is an unbiased estimator of the modified Hadamard
variance, MHVAR. Expressions for the equivalent number of
c² degrees of freedom (edf)
required to set MHVAR confidence limits are available in [18].

Clock noise (and other noise processes) can be described in terms of
power spectral density, which can be modeled as a power law function S(f^{a}), where f is Fourier frequency and
a is the power law exponent. When a variance such as
MHVAR is plotted on log-log axes versus averaging time, the various power law
noises correspond to particular slopes . MHVAR was developed in Reference [17]
for determining the power law noise type of Internet traffic statistics, where
it was found to be slightly better for that purpose than the modified Allan
variance, MAVAR, when there were a sufficient number of data points. MHVAR
could also be useful for frequency stability analysis, perhaps in cases where
it was necessary to distinguish between short-term white and flicker PM noise
in the presence of more divergent (a = -3 and -4)
flicker walk and random run FM noises. The MHVAR log-log slope is related to
the power law noise exponent by m = -3 - a.

The modified Hadamard variance concept can be generalized to subsume AVAR, HVAR, MAVAR, MHVAR, and MHVARs using higher-order differences:

where d = phase differencing order; d = 2 corresponds to MAVAR, d = 3
to MHVAR; higher order differencing is not commonly used in the field of
frequency stability analysis. The unmodified, non-overlapped AVAR and HVAR
variances are given by setting m = 1. The allowable power law exponent for
convergence of the variance is equal to a > 1 -
2d, so the 2nd difference Allan variances can be used for a > -3 and the 3rd difference Hadamard variances for
a > -5.

**HADAMARD TOTAL
VARIANCE**

The Hadamard total variance, HTOT, is a total version of the Hadamard variance. As such, it rejects linear frequency drift while offering improved confidence at large averaging factors.

An HTOT calculation, as described in references [15 and
19], begins with an array of N fractional frequency data points, y_{i
}with sampling period t_{0} which are to be analyzed at averaging time t=mt_{0}. HTOT is computed from a set
of N-3m+1 subsequences of 3m points. First, a
linear trend (frequency drift) is removed from the subsequence by averaging the
first and last halves of the subsequence and dividing by half the
interval. Then the drift-removed subsequence is
extended at both ends by uninverted, even reflection.
Next the Hadamard variance is computed for these 9m points. Finally, these steps are repeated for each of the N-3m+1
subsequences, calculating HTOT as their overall average.

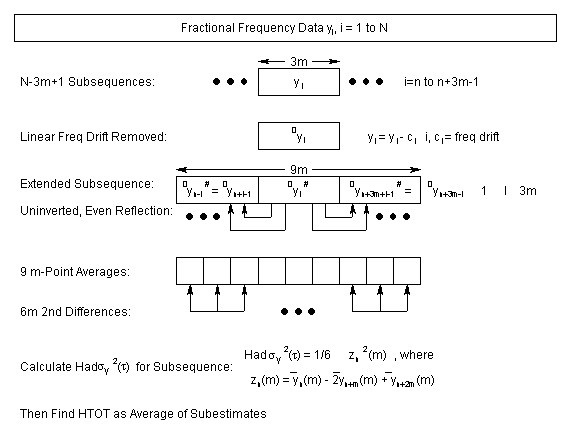

These steps are shown in the diagram below:

Computationally, the HTOT process requires 3 nested loops:

· An outer summation over the N-3m+1 subsequences. The 3m-point subsequence is formed, its linear trend is removed, and it is extended at both ends by uninverted, even reflection to 9m points.

·
An inner summation over the 6m unique
groups of m-point averages from which all possible fully-overlapping
2^{nd} differences are used to calculate HVAR.

· A loop within the inner summation to sum the frequency averages for 3 sets of m points.

The final step is to scale the result according to the
sampling period, t_{0}, averaging factor, m, and number of points, N. Overall, this can be expressed as:

where the H_{i}(m) terms are the
z_{n}(m) Hadamard 2^{nd} differences from the triply-extended,
drift-removed subsequences. For best consistency,
the overlapping Hadamard variance is used instead of the Hadamard total
variance at m=1. At the largest possible averaging
factor, m = N/3, the outer summation consists of only one term, but the inner
summation has 6m terms, thus providing a sizable number of estimates for the
variance. The Hadamard total variance is a biased
estimator of the Hadamard variance, so a bias correction is required that is
dependent on the power law noise type and number of samples.

**EXAMPLES**

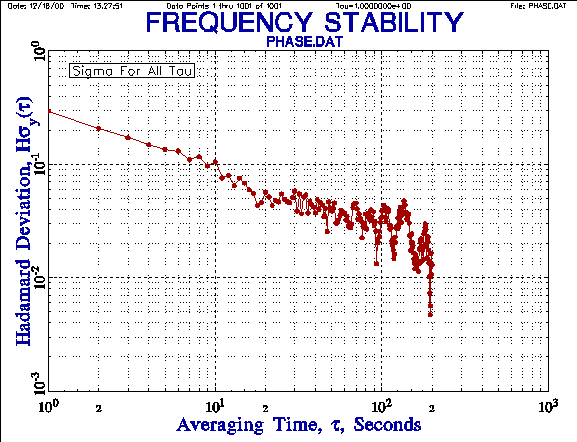

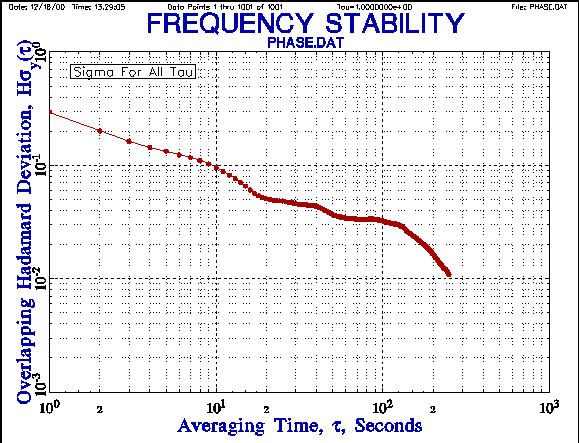

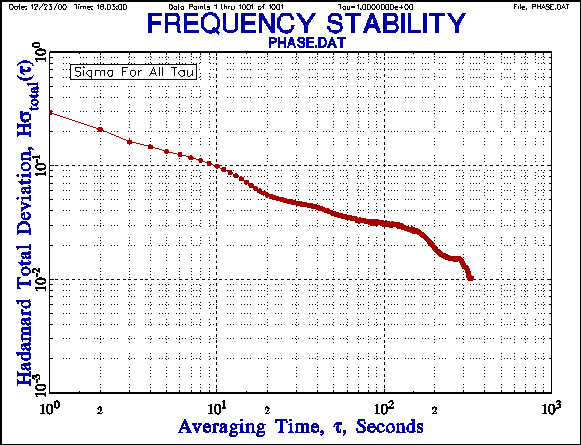

The following plots shown the improvement in the consistency of the overlapping Hadamard deviation results compared with the normal Hadamard deviation, and the extended averaging factor range provided by the Hadamard total deviation [10].

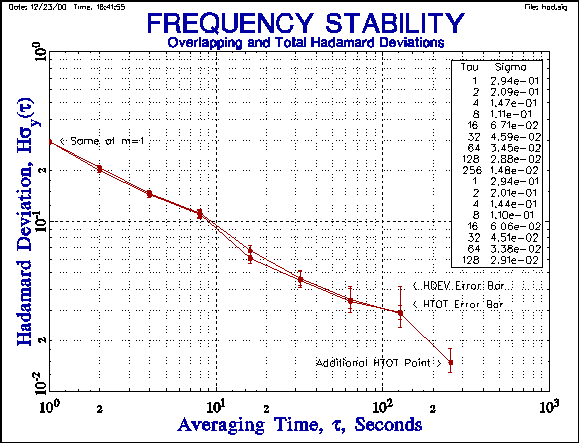

A comparison of the overlapping and total Hadamard deviations shows
the tighter error bars of the latter, allowing an additional point to be shown
at the longest averaging factor.

**TRANSFER FUNCTION**

The Hadamard variance s_{H}^{2}_{}(t) may be related to the spectral density
of the fractional frequency fluctuations, S_{y}(f), by its transfer
function, |H_{H}(f)|^{2}:

where the upper cutoff frequency, f_{h}, is determined by
hardware factors.

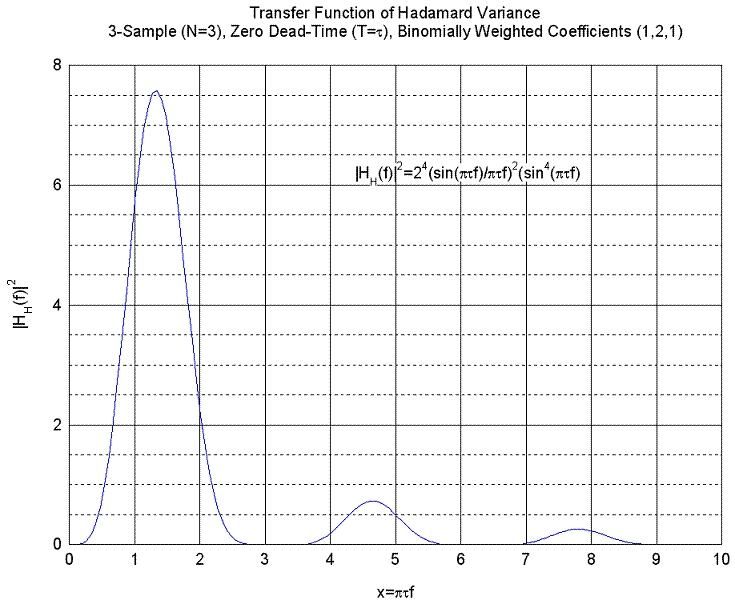

The transfer function for the 3-sample (N=3) zero dead-time (T=t) binominally-weighted Hadamard variance in the frequency domain is given by [8, 21]:

which is plotted below:

For ptf << 1, this function behaves
as (ptf)^{4}, showing that the Hadamard
variance is convergent for power law noise processes S_{y}^{a} down to as low as a =
-4 (Random Run FM).

**FREQUENCY DOMAIN
ANALYSIS**

The Hadamard variance may also be used to perform a frequency domain
(spectral) analysis because it has a transfer function that is a close
approximation to a narrow rectangle of spectral width of
1/(2·N·t_{0}), where N is the
number of samples, and t_{0}
is the measurement time [16]. This leads to a simple expression for the spectral
density of the fractional frequency fluctuations S_{y}(f) » 0.73 ·
t_{0}· _{}s^{2}_{H}(t)
/ N, where f =
1/(2·t_{0}), which can be
particularly useful at low Fourier frequencies.

**OTHER SIMILAR
VARIANCES**

The Picinbono variance is a similar 3-sample statistic. It is identical to the Hadamard variance except for a factor of 2/3 [12, 13, 20]. Sigma-z is another statistic that is similar to the Hadamard variance that has been applied to the study of pulsars [14].

**NOISE IDENTIFICATION AND
CONFIDENCE LIMITS**

It is necessary to identify the dominant power law noise type as the first step in determining the estimated number of chi-squared degrees of freedom for the Hadamard statistics so their confidence limits can be properly set [11, 15]. Because the Hadamard variances can handle the divergent flicker walk FM and random run FM power law noises, techniques for those noise types must be included. Noise identification is particularly important for applying the bias correction to the Hadamard total variance.
